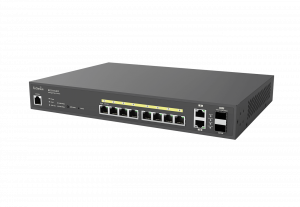

Cloud Managed 8-Port Gigabit 130W PoE+ Switch

Layer 2+ Switch with 4 Uplink Ports and Multiple Management Options for SMBs

Product Highlight

EnGenius Cloud ECS1112FP, an 8-Port Gigabit PoE+ Layer 2+ Switch with 130W Budget, 2 GbE and 2 Dual-Speed SFP ports for uplinks. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.

  • 8 10/100/1000 Base-T GbE Ports
  • Full-Featured Layer 2+ Switching
  • 802.3 at/af PoE+ Ready on All Ports with 130W PoE budget
  • 24 Gbps Switching capacity
  • 2 Gigabit Ethernet Port and 2 Dual-Speed SFP (fiber) uplink ports

Downloads

File NameType
Cloud Switch series Data sheet Data Sheet
Cloud Management Data sheet Data Sheet
Cloud Solution White Paper white-paper: White Paper

Technical Specifications

Port Standards

802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports

10 10/100/1000 Mbps Ports + 2x SFP Ports

Switching Capacity

24Gbps

SDRAM

256MB

Flash Memory

32MB

PoE Capable Ports

1-8

Total PoE Budget

130w

Power Source

100 ~ 240VAC, 50-60Hz

Physical Interface

LED Indicators

Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Ports

Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

L2 Features

Network Management

EnGenius Cloud
ezMaster
Local Web GUI


MAC Address Table

8K


Jumbo Frame

9K


Multicast Group

Max 256 groups

MLD Snooping

MLD Snooping: v1

QoS-Number of Priority Queues Supported

Queue 8

Trust Mode

Cos/802.1p

DSCP

CoS/802.1p-DSCP

Scheduling Mechanism

Strict / WRR/ Strict + WRR


Bandwidth Control

Port-based bandwidth control (Ingress/Egress)

Port Security

Max. 256 Entries

Access Control List (ACL)

MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding

Web Graphical User Interface (GUI)

HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SSL Certificate

Certificate/Key Import

SNMP

SNMP v1/v2c/v3 Support

RMON

RMON 1,2,3,9

System Time

Time Setting/Daylight saving

Common L2 Features

802.1d Spanning tree
Loopback Detection
Multicast Filitering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree

L3 Features

Multiple IP Interface

20 IPv6 address

ARP Table

Max. 192 ARP entries

Static ARP

Static 192 ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries

Environmental & Physical

Temperature Range

Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)

Operating: 5% – 95%

Package Contents

1x ECS Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit

Dimensions & Weight

Device Dimensions & Weights

Weight: 1.9Kg
Width: 330mm
Length: 229mm
Height: 44mm

Warranty

2 year

Model Comparison

ECS1112FP

ECS1552FP

ECS1528FP

ECS1008P

Gigabit PoE Ports848248
SFP Ports2 X 1G SFPECS1552FP4 x 10G SFP+-
PoE Mode802.3 at/af802.3at/af802.3at/af802.3af
Total PoE Budget130W740W410W55W
Switching Capacity24Gbps176 Gbps128Gbps16 Gbps
10G Support----
Dimensions330 x 229 x 44 mm310 x 440 x44 mm260 x 440 x 44 mm105 x 240 x 27mm
