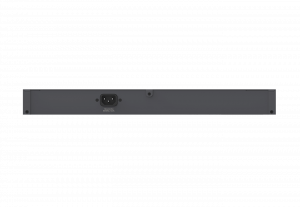

CloudSwitch MGPlus 48 Full PoE

Cloud Managed 740W PoE+ 48-Port Network Switch

ECS2552FP

Product Highlight

EnGenius Cloud ECS2552FP Multi-Gigabit 2.5Gb Switch is equipped with 16 x 2.5G PoE+ ports and 32 x gigabit PoE+ ports with 720W Budget, and 4 x 10G SFP+ uplink ports. Businesses can realize next-generation speeds to Wi-Fi 6 access points, storage servers, and 2.5 G-supported work stations. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or budget.

  • 16 x 2.5G PoE+ Ports to unleash elevated speeds for NAS, workstations, or WiFi 6 APs
  • 32 x Gigabit PoE+ ports for a wide range of network devices such as IP cameras, VoIP phones, workstations, and more
  • 4 x Dual-Speed 10G SFP+ (fiber) uplink ports to high-speed NAS and servers for a high-performance network
  • 48 x 802.3af/at PoE+ ports with 740W power budget
  • Zero-touch provisioning, centralized cloud management, and visualized monitoring
  • A hybrid cloud switch supports flexible management options such as EnGenius Cloud or standalone
  • Robust security that supports Port-based / MAC-based ACL Storm control, DHCP Snooping, DOS Attack Prevention, 802.1X & RADIUS Authentication, and more
  • Optimized for quality voice and video traffic with Voice-VLAN feature
  • PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
  • PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera

Related Products

Products
Accessories

Technical Specifications

Port Standards

802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G/5GBase-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports

32×10/100/1000 Mbps Ports
16×100/1000/2500 Mbps Ports
4x SFP+ Ports

Switching Capacity

224 Gbps

SDRAM

512 MB

Flash Memory

128 MB

PoE Capable Ports

1-48

Total PoE Budget

740W

Power Source

100 ~ 240VAC, 50-60Hz

Physical Interface

LED Indicators

Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Ports

Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

L2 Features

Network Management

EnGenius Cloud
Local Web GUI

MAC Address Table

32K

Jumbo Frame

10K

Multicast Group

Max 256 groups



MLD Snooping

MLD Snooping: v1

QoS-number of Priority Queues Supported

Queue 8



Trust Mode

Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism

Strict / WRR/ Strict + WRR

Bandwidth Control

Port-based bandwidth control (Ingress/Egress)

Port Security

Max. 256 Entries



Access Control List (ACL)

MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Timebase ACL

Web Graphical User Interface (GUI)

HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SSL Certificate

Certificate/Key Import

SNMP

SNMP v1/v2c/v3 Support

RMON

RMON 1,2,3,9

System Time

Time Setting/Daylight saving

Common L2 Features

802.1d Spanning tree
Loopback Detection
Multicast Filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree

L3 Features

Multiple IP Interface

20 IPv6 address

ARP Table

Max. 192 ARP entries

Static ARP

Static 192 ARP entries

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries

Environmental & Physical

Temperature Range

Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)

5% – 95%

Dimensions & Weight

ECS2552FP Device

Weight: 5.9Kg
Width: 310mm
Length: 440mm
Height: 44mm

Package Contents

1x ECS Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit

Warranty

2 Years

Model Comparison

CloudSwitch MGPlus 48 Full PoE

CloudSwitch MGPlus 24 Full PoE

CloudSwitch L2Plus 8 PoE

CloudSwitch L2Plus 8 Full PoE

CloudSwitch L2Plus 24

CloudSwitch L2Plus 24 Full PoE

CloudSwitch L2Plus 24 PoE

CloudSwitch L2Plus 48 PoE

CloudSwitch L2Plus 48 Full PoE

Switch Class Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+ Layer 2+
Gigabit Ports 32 16 8 10 24 24 24 48 48
Multi-G Ports 16 x 2.5G 8 x 2.5G - - - - - - -
SFP Ports - - - 2 - - - - -
SFP+ Ports 4 4 - - 4 4 4 4 4
RJ45 Console Port Yes Yes - Yes Yes Yes Yes Yes Yes
PoE Capable Port Ports 1 - 48 Ports 1 - 24 Ports 1-8 Ports 1 - 8 - Ports 1 - 24 Ports 1-24 Ports 1-48 Ports 1-48
Power-over-Ethernet 802.3af/at 802.3af/at 802.3af 802.3af/at - 802.3af/at 802.3af/at 802.3af/at 802.3af/at
Total PoE Budget 740W 410W 55W 130W - 410W 240W 410W 740W
Form Factor 19”1U 19”1U 9.45 (Desktop) 13"1U 13"1U 19"1U 19"1U 19"1U 19"1U
Switching Capacity 224 Gbps 152 Gbps 16 Gbps 24 Gbps 128 Gbps 128 Gbps 128 Gbps 176 Gbps 176 Gbps
MAC Address Table Size 32K 16K 8k 8k 16k 16k 16k 32K 32K
Dimensions 440 x 310 x 44 mm 440 x 260 x 44 mm 240 x 105 x 27 mm 330 x 230 x 44 mm 440 x 200 x 44 mm 440 x 260 x 44 mm 260 x 440 x 44 mm 440 x 310 x 44 mm 440 x 310 x 44 mm
Cloud Managed Mode EnGenius Cloud EnGenius Cloud EnGenius Cloud EnGenius Cloud EnGenius Cloud EnGenius Cloud EnGenius Cloud EnGenius Cloud EnGenius Cloud
On-premises Managed - - - - - - - - -
Standalone Mode Yes Yes Yes Yes Yes Yes Yes Yes Yes
