Indoor Wireless Access Point features the newest Wi-Fi 6 technology

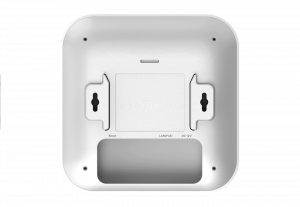

ECW220 Wi-Fi 6 (802.11ax) 2x2 Indoor Wireless Access Point features 802.11ax technology, such as OFDMA, MU-MIMO, and spatial reuse, to expand the capabilities of Wi-Fi.
| File Name | Type |
|---|---|
 Cloud Access Point Datasheet
|
Data Sheet |
|
Cloud Solution White Paper
|
white-paper |
|
Cloud Management Datasheet
|
Data Sheet |
|
ECW Indoor AP Quick Guide
|
Quick Guide |
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with 802.11a/b/g/n/ac
2 x 2.4 GHz: 4 dBi
2 x 5 GHz: 5 dBi
Integrated Omni-Directional Antenna
1 x 10/100/1000 Ethernet Port (PoE)
1 x DC Jack
1 x Reset Button
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
Power-over-Ethernet: 802.3af/at Input
IEEE 802.11e Compliant Source
12VDC /1.5A Power Adapter (optional)
12.8W
Dual-Radio Concurrent 2.4 GHz & 5 GHz
AP, AP Mesh, Mesh
2.4 GHz: 2400 MHz~2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Up to 22* dBm on 2.4 GHz
Up to 22* dBm on 5 GHz
(The data is for ECW220 hardware v2 only. For hardware v1, the Tx-power is 20 dBm.)
(Maximum power is limited by regulatory domain)
2 × 2:2
Two (2) spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate with HE40 bandwidth to a 2×2 wireless client device under the 2.4 GHz radio. Two (2) spatial stream Single User (SU) MIMO for up to 1,200 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5 GHz radio.
Two (2) spatial streams Multiple (MU)-MIMO up to 1,200 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 5 GHz simultaneously.
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
support 8 SSIDs on both 2.4 GHz and 5 GHz
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Supports 802.1d Spanning Tree Protocol
Complaint With IEEE 802.11e Standard
WMM
802.11r/k
WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
Https
SSH Tunnel
Client Isolation
Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)
Operating: 90% or less
Storage: 90% or less
Weight: 382 g
Width: 160 mm
Length: 160 mm
Height: 33 mm
1 – ECW220 Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 – Ceiling and Wall Mount Screw Kit
1 – Quick Installation Guide
FCC
CE
IC
2 Years
ECW220 |
ECW336 |
ECW230 |
ECW230S |
ECW220S |
ECW120 |
ECW115 |
|
|---|---|---|---|---|---|---|---|
| Wi-Fi Standard | Wi-Fi 6 (11ax) | Wi-Fi 6 (11ax) | Wi-Fi 6 (11ax) | Wi-Fi 6 (11ax) | Wi-Fi 6 (11ax) | 11ac Wave 2 | 11ac Wave 2 |
| Radio | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz & 6 GHz | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz |
| Max. Data Rates(2.4 GHz) | 600 Mbps | 1,200 Mbps | 1,200 Mbps | 1,200 Mbps | 600 Mbps | 400 Mbps | 400 Mbps |
| Max. Data Rates(5 GHz) | 1,200 Mbps | 2,400 Mbps | 2,400 Mbps | 2,400 Mbps | 1,200 Mbps | 867 Mbps | 867 Mbps |
| Max. Data Rates(6 GHz) | - | 4,800 Mbps | - | - | - | - | - |
| Radio Chains | 2 x 2:2 | 4 × 4:4 | 4 x 4:4 | 4 x 4:4 | 2 × 2:2 | 2 x 2:2 | 2 × 2:2 |
| Transmit Power on(2.4 GHz) | 22 dBm | 23 dBm | 23 dBm | 23 dBm | 22 dBm | 23 dBm | 17 dBm |
| Transmit Power on(5 GHz) | 22 dBm | 23 dBm | 23 dBm | 23 dBm | 22 dBm | 23 dBm | 17 dBm |
| Transmit Power on(6 GHz) | - | 23 dBm | - | - | - | - | - |
| Antenna | 2 x 4 dBi (2.4 GHz); 2 x 5 dBi (5 GHz) | 4 x 5 dBi Omni (2.4 GHz); 4 x 6 dBi Omni(5 GHz); 4 x 5 dBi Omni(6 GHz); | 4 x 5 dBi (2.4 GHz); 4 x 6 dBi (5 GHz) | 4 x 5 dBi (2.4 GHz); 4 x 6 dBi (5 GHz) | 2 x 4 dBi (2.4 GHz); 2 x 5 dBi (5 GHz) | 2 x 5 dBi (2.4 GHz); 2 x 5 dBi (5 GHz) | 2 x 4 dBi (2.4 GHz); 2 x 5 dBi (5 GHz) |
| Power-over-Ethernet | 802.3af/at | 802.3at | 802.3af/at | 802.3af/at | 802.3af/at | 802.3af | 802.3af/at |
| Ethernet Ports | 1 x 10/100/1000 Ethernet Port (PoE+) | 1 x 5G port (PoE+) | 1 x 10/100/1000/2500 Ethernet Port (PoE+) | 1 x 10/100/1000/2500 Ethernet Port (PoE+) | 1 Gigabit port (PoE+) | 1 x 10/100/1000 Ethernet Port (PoE) | 2 x 10/100/1000 Ethernet Ports (PoE+) 1 x 10/100/1000 Ethernet Port (PSE Out) |
| Mounting Type | Wall / Ceiling | Wall/ Ceiling | Wall / Ceiling | Wall / Ceiling | Wall/ Ceiling | Wall / Ceiling | Wall / Ceiling |
| Dimensions | 160 x 160 x 33 mm | 205 x 205 x 33 mm | 205 x 205 x 33.2 mm | 205 x 205 x 33.2 mm | 160 x 160 x 33 mm | 161.5 x 161.5 x 41.6 mm | 140 x 90 x 40 mm |
| Mesh Technology | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| On-premises (ezMaster) | - | - | - | - | - | - | - |
| Cloud To-Go app | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| EnWiFi app | - | - | - | - | - | - | - |
|
