Cloud Managed Wi-Fi 6 4×4 Indoor Wireless Access Point

Wireless Access Point features the newest Wi-Fi technology that advances Wi-Fi capabilities

Product Highlight

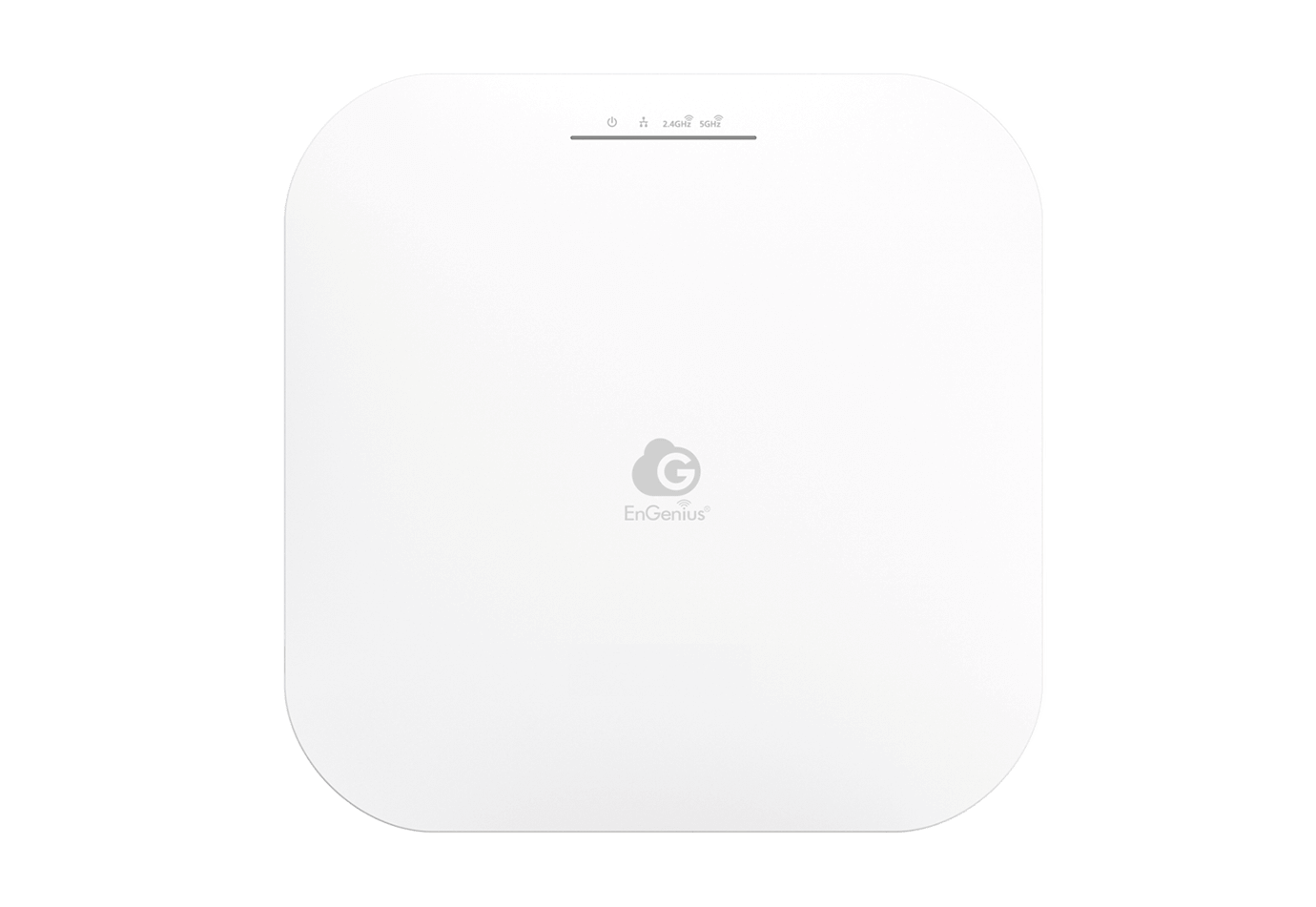

ECW230 Wi-Fi 6 (802.11ax) 4x4 Managed Indoor Wireless Access Point features 802.11ax technology, such as OFDMA, MU-MIMO, and spatial reuse, to expand the capabilities of Wi-Fi.

  • Dual concurrent 802.11ax architecture & backward-compatible
  • Supercharged speeds up to 2,400 Mbps (5 GHz) & up to1,148 Mbps (2.4 GHz)
  • 2.5 GbE realizes greater throughput and supports 802.3at & 48V PoE input for flexible installation over 100 meters (328 feet)
  • WPA3 & WPA2-AES authentication support
  • Cloud Managed with optional Mesh mode

Technical Specifications

Standards

IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with 802.11a/b/g/n/ac

Antenna

4 x 2.4 GHz: 3 dBi
4 x 5 GHz: 3 dBi
Integrated Omni-Directional Antenna

Physical Interface

1 x 10/100/1000/2500 Ethernet Port (PoE+)
1 x DC Jack
1 x Reset Button

LED Indicators

1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz

Power Source

Power-over-Ethernet: 802.3at Input
IEEE 802.11e Compliant Source
12VDC /2A Power Adapter (optional)

Maximum Power Consumption

19.5W

Wireless & Radio Specifications

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes

AP, AP Mesh, Mesh

Frequency Radio

2.4 GHz: 2400 MHz~2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power Up to 20 dBm on 2.4 GHz

Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
(Maximum power is limited by regulatory domain)

Tx Beamforming (TxBF)

Radio Chains/Spatial Stream

4 × 4:4

SU-MIMO

Four (4) spatial stream Single User (SU) MIMO for up to 1,148 Mbps wireless data rate with HE40 bandwidth to a 4×4 wireless client device under the 2.4 GHz radio. Four (4) spatial stream Single User (SU) MIMO for up to 2,400 Mbps wireless data rate with HE80 to a 4×4 wireless device under the 5 GHz radio.

MU-MIMO

(4) spatial streams Multiple (MU)-MIMO up to 2,400 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 5 GHz simultaneously.

Four (4) spatial streams Multiple (MU)-MIMO up to 1,148 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 2.4 GHz simultaneously

Supported Data Rates (Mbps):

802.11ax:
2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2,400 (MCS0 to MSC11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)

Supported Radio Technologies

802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization

802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Management Features

Multiple BSSID

support 8 SSIDs on both 2.4 GHz and 5 GHz

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree

Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)

Complaint With IEEE 802.11e Standard
WMM

Fast Roaming

802.11r/k

Wireless Security

WPA2-PSK
WPA2-Enterprise
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
Https
SSH Tunnel
Client Isolation

Environmental & Physical

Temperature Range

Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)

Humidity (non-condensing)

Operating: 90% or less
Storage: 90% or less

Dimensions & Weight

ECW230 Device

Weight: 597 g
Width: 205 mm
Length: 205 mm
Height: 41.5 mm

Package Contents

1 – ECW230 Cloud Managed Indoor Access Point
1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 – Ceiling and Wall Mount Screw Kit
1 – Quick Installation Guide

Compliance Regulatory

FCC
CE
IC

Warranty

2 Years

Model Comparison

ECW230

ECW115

ECW120

ECW220

ECW160

ECW260

Wi-Fi Standard802.11a/b/g/n/ac/ax802.11a/b/g/n/ac Wave 2802.11a/b/g/n/ac Wave 2802.11a/b/g/n/ac/ax802.11a/b/g/n/ac Wave 2802.11a/b/g/n/ac/ax
Radio2.4 GHz & 5 GHz2.4 GHz & 5 GHz2.4 GHz & 5 GHz2.4 GHz & 5 GHz2.4 GHz & 5 GHz2.4 GHz & 5 GHz
Max. Data Rates(2.4 GHz)1,148 Mbps400 Mbps400 Mbps574 Mbps400 Mbps574 Mbps
Max. Data Rates(5 GHz)2,400 Mbps867 Mbps867 Mbps1,200 Mbps867 Mbps1,200 Mbps
Radio Chains4 x 4:42 × 2:22 x 2:22 x 2:22 x 2:22 x 2:2
Transmit Power on(2.4 GHz)Up to 23 dBmUp to 17 dBmUp to 23 dBmUp to 20 dBmUp to 23 dBmUp to 23 dBm
Transmit Power on(5 GHz)Up to 23 dBmUp to 17 dBmUp to 23 dBmUp to 20 dBmUp to 23 dBmUp to 25 dBm
Antenna4 x 3 dBi (2.4 GHz); 4 x 3 dBi (5 GHz)2 x 4 dBi (2.4 GHz); 2 x 5 dBi (5 GHz)2 x 5 dBi (2.4 GHz); 2 x 5 dBi (5 GHz)2 x 3 dBi (2.4 GHz); 2 x 3 dBi (5 GHz)2 x 2.4 GHz: 5 dBi ; 2 x 5 GHz: 5 dBi2 x 5 dBi (2.4 GHz); 2 x 5 dBi (5 GHz)
Power-over-Ethernet802.3af/at802.3af/at802.3af802.3af/at802.3af/at802.3af/at
Ethernet Ports1 x 10/100/1000/2500 Ethernet Port (PoE+)2 x 10/100/1000 Ethernet Ports (PoE+) 1 x 10/100/1000 Ethernet Port (PSE Out)1 x 10/100/1000 Ethernet Port (PoE)1 x 10/100/1000 Ethernet Port (PoE+)1 x 10/100/1000 Ethernet Port (PoE+)1 x 10/100/1000/2500 Ethernet Port (PoE+)
Mounting TypeWall / CeilingWall / CeilingWall / CeilingWall / CeilingPole / WallPole / Wall
Dimensions205 x 205 x 33.2 mm140 x 90 x 40 mm161.5 x 161.5 x 41.6 mm160 x 160 x 33.2 mm112 x 173 x 30 mm190 x 124 x 52.5 mm
Mesh TechnologyYesYesYesYesYesYes
On-premises (ezMaster)------
Cloud To-Go appYesYesYesYesYesYes
EnWiFi app------
