EOL

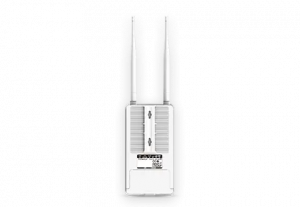

ENS202EXT

Wireless Outdoor Access Point; N300 2.4 GHz Removable Antennas

Product Highlight

The ENS202EXT Outdoor Wireless Access Point/Bridge provides 11n speeds outdoors to 300 Mbps on the 2.4 GHz band. This dual-functional AP/bridge is optimally used with commercial and residential energy efficient control hardware such as pool equipment, irrigation systems, and digital signage displays. Pair with the SA2216 Sector Antenna for extended range.

  • Weatherproof IP55-Rated Housing Resists Harsh Climates
  • Enhanced Coverage Supports Wi-Fi to Yards & Patios
  • (2) Detachable 5 dBi MIMO Antennas Maximize 360° Coverage
  • PoE Extends Power to Unwired Areas; Connect an IP Camera or AP via 2nd Port

Downloads

File Name Type
ENS202EXT Datasheet (Not available) Data Sheet
download iconEnSky Series Outdoor AP Datasheet Data Sheet
download iconENS202EXT-M2M Datasheet Data Sheet
download iconENS202EXT QIG EN Quick Guide
download iconENS202EXT User Manual EN User Manual
download iconENS202EXT FW v1.6.3 Firmware
ENS202EXT/ENS202v2 FW v3.5.2.4 (Not available) Firmware
download iconENS202 EXTv2 firmware v3.6.7 Firmware
download iconENS202 EXTv2 firmware v3.6.8 Firmware
download iconENS202 EXTv2 firmware v3.6.10 Firmware

Technical Specifications

Standard

IEEE 802.11b/g/n on 2.4 GHz

Memory Capacity

Memory: 64 MB
Flash Memory 16 MB

Antenna

2 External Detachable Omni-Directional Antennas
5 dBi on 2.4 GHz

Physical Interface

2 x 10/100 Fast Ethernet Ports
1 x Reset Button

LED Indicators

1 x Power
WLAN (Wireless Connection)
2.4 GHz
2 x LAN

Power Source

PoE injector (EPA2406GP)
100V~240V AC, 50-60Hz
0.4A @ 120V AC
Surge Protection: 1KV
ESD Protection
Contact: 4KV
Air: 8 KV

Mounting

Wall Mount
Pole Mount

Ingress Protection Marking

IP55-Rated Enclosure

Wireless & Radio Specifications

Operating Frequency

5GHz

Operation Modes

Access Point
Repeater
Client Bridge
Client Router
WDS: AP, Bridge

Frequency Radio

5GHz:
5180MHz ~ 5240MHz, 5260 ~ 5320MHz, 5500MHz ~ 5700MHz, 5745MHz ~ 5825MHz

Transmit Power

Up to 15 dBm on 5 GHz
Max transmit power is limited by regulatory power

Radio Chains/Spatial Streams

2 x 2:2

Supported Data Rates (Mbps)

5 GHz: Max 300
802.11a: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 300 (MCS0 to MCS15)

Supported Radio Technology

802.11a/n: Orthogonal frequency-division Multiplexing (OFDM)

Channelization

802.11n with 20/40 MHz channel width
802.11a with 20 MHz channel width

Supported Modulation

802.11a/n: BPSK, QPSK, 16-QAM, 64-QAM

Management Features

Multiple BSSID

Supports up to 4 SSIDs

VLAN Tagging

Supports 802.1q SSID-to-VLAN tagging
VLAN Pass through

Spanning Tree

QoS

WMM

SNMP

v1, v2c, v3

MIB

I/II, Private MIB

Environmental & Physical

Temperature Range

Operating: -4°F to 140°F, -20°C to 60°C
Storage: -22°F to 176°F, -30°C to 80 °C

Humidity (Non-condensing)

Operating: 90% or less
Storage: 90% or less

Dimensions & Weight

ENS202EXT Device

Weight: 0.66 lbs.
Width: 3.93″ (100 mm)
Length: 7.08″ (186 mm)
Height: 1.14″ (29 mm)

Package Contents

– ENS202EXT Outdoor AP
– PoE Injector (EPA2406GP)
– Pole Mount Ring
– Mounting Screw Set
– Quick Installation Guide
– 2 External Detachable Omni-Directional Antennas

Certifications

FCC
IC



Model Comparison

ENS202EXT

ENH1750EXT

ENS1750

ENS500EXT

ENH710EXT

ENH220EXT

Wi-Fi Standard 802.11b/g/n 802.11a/b/g/n/ac 802.11a/b/g/n/ac 802.11a/b/g/n 802.11a/b/g/n/ac 802.11b/g/n
Radio 2.4 GHz 2.4 GHz & 5GHz 2.4GHz & 5 GHz 5 GHz 2.4 GHz & 5 GHz 2.4 GHz
Max. Data Rates(2.4 GHz) 300 Mbps 450 Mbps 450 Mbps - 300 Mbps 300 Mbps
Max. Data Rates(5 GHz) - 1,300 Mbps 1,300 Mbps 300 Mbps 300 Mbps -
Radio Chains 2 x 2:2 3 x 3:3 3 x 3:3 2 x 2:2 2 x 2:2 2 x 2:2
Transmit Power on(2.4 GHz) Up to 26 dBm Up to 29 dBm Up to 29 dBi - Up to 27 dBm Up to 27 dBm
Transmit Power on(5 GHz) - Up to 29 dBm Up to 27 dBi Up to 26 dBm Up to 27 dBm -
Integrated Antenna 2 x 5 dBi (SMA-Type) - 5 dBi on 2.4 GHz & 5 GHz - - -
External Antenna - 3 x 5 dBi (2.4 GHz) 3 x 7 dBi (5 GHz) - 2 x 5 dBi ( 5 GHz) 2 x 5 dBi(2.4 GHz); 2 x 7 dBi (5 GHz) 2 x 5 dBi (2.4 GHz)
Power-over-Ethernet 24V Proprietary 802.3af/at (at in + af out) 24V Proprietary 24V Proprietary 802.3af/at 802.3af/at
Ethernet Ports 2 x 10/100 Ethernet Ports 2 x 10/100/1000 Ethernet Ports 2 x 10/100/1000 Gigabit Ethernet Ports 2 x 10/100 Fast Ethernet Ports 2 x 10/100/1000 Gigabit Ethernet Ports 2 x 10/100/1000 Gigabit Ethernet Ports
Mounting Type Wall/Pole Wall/Pole Wall/Pole Wall/Pole Wall/Pole Wall/Pole
IP Rating IP55 IP68 IP55 IP65 IP68 IP68
Dimensions 186 x 100 x 29 mm 285 x 218 x 53 mm 304 x 181 x 46 mm 186 x 100 x 29 mm 285 x 217.93 x 53.34 mm 285 x 217.93 x 53.34 mm
Mesh Technology - Yes - - - -
Cloud To-Go app - - - - - -
EnWiFi app - - - - - -
View
View
View
View
View
View
